SMARTSCAN

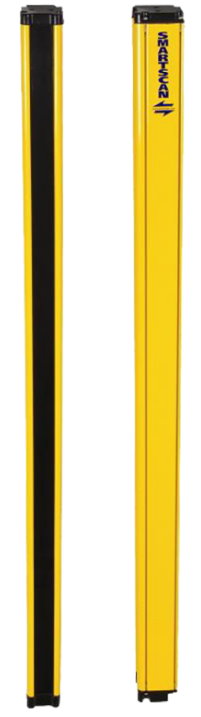

C4 Compact Series Machine Safety Devices
C4 series safety light curtains use the latest
electronic and mechanical manufacturing
technology, small and strong exterior structure,
durable and lower price compared with the
same level products.
★Applications
•Press brakes
•Power presses
•Mechanical presses
•Robotic work cells
•Process lines
•Wood working machines
•Guillotines
•Metal folding machines
★Feature
► Type 4( IEC 61496-1、IEC 61496-2)IEC62061 SIL2&ISO13849-1 PL e
► Detection zone:150mm ~ 2400mm
► Range:0.5m ~ 10m
► Operating temperature:0℃~+50℃
► Enclosure rating IP65
► Connector: Direct output
•Appearance small size suitable for machinery simplify design requirements,
strong mechanical structure no extra agency support is necessary.
•Various type, 30mm、 40mm object detec tion.

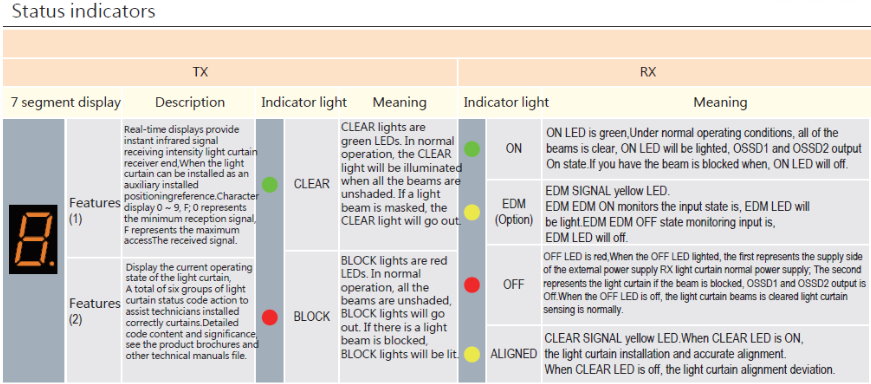

Built-in auto-reset and manual reset function. With the received signal strength
indicator light curtain seven segment display (can be used with light curtain in
•the vertical direction Installation location, set the font direction).

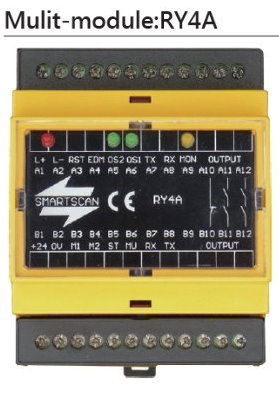

•Varity of interfaces, which connect to safety module
• Easy installation alignment and regulation

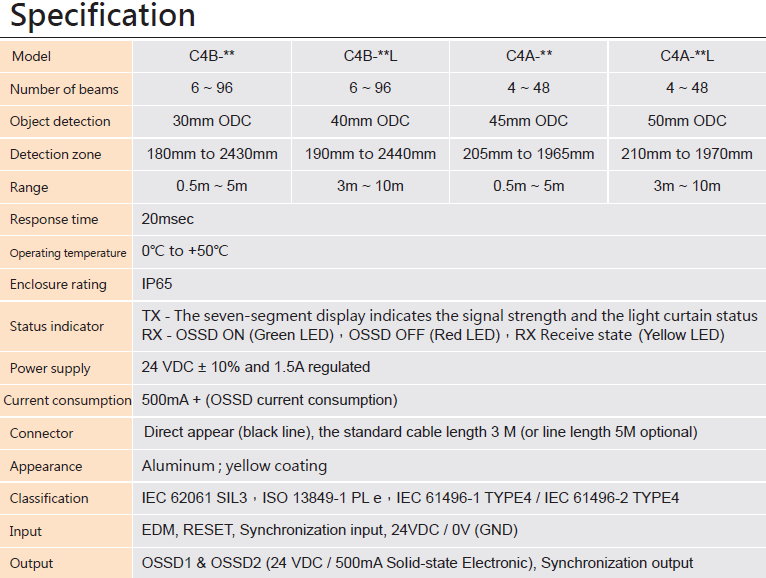

★Information

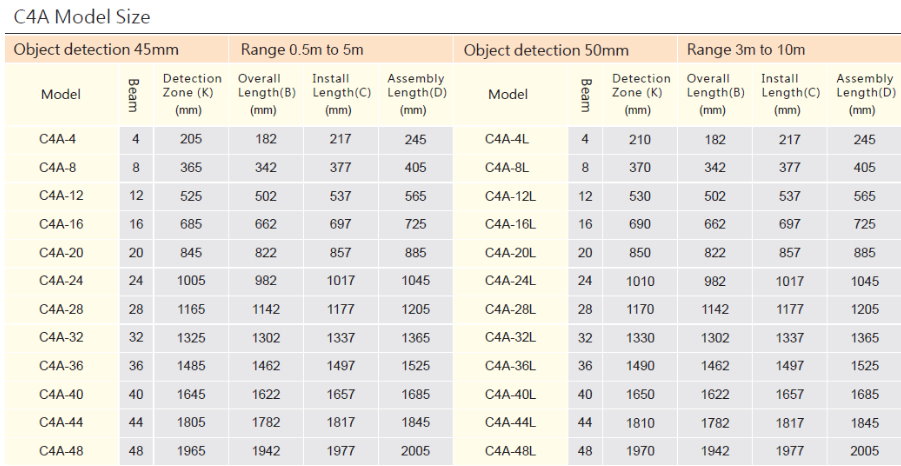

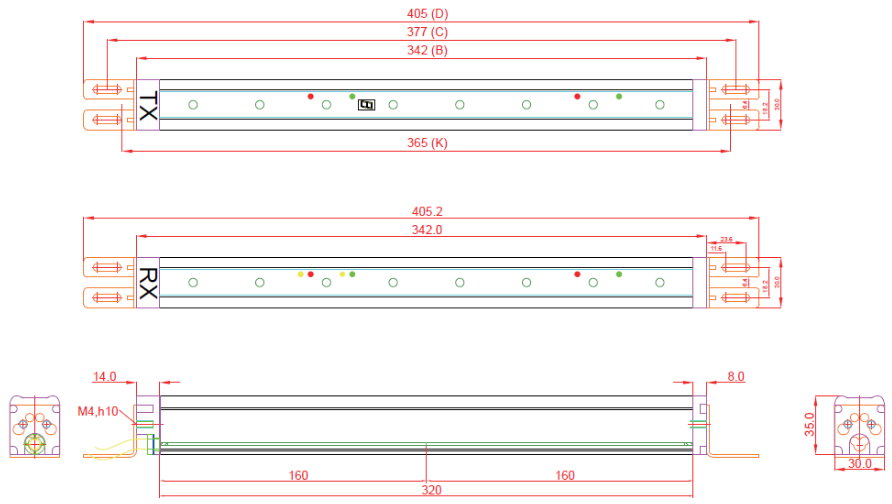

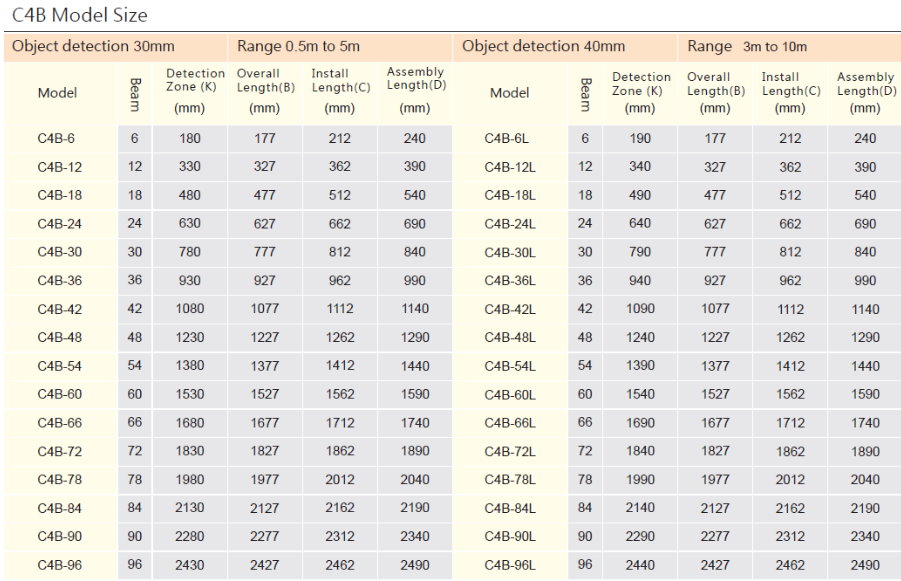

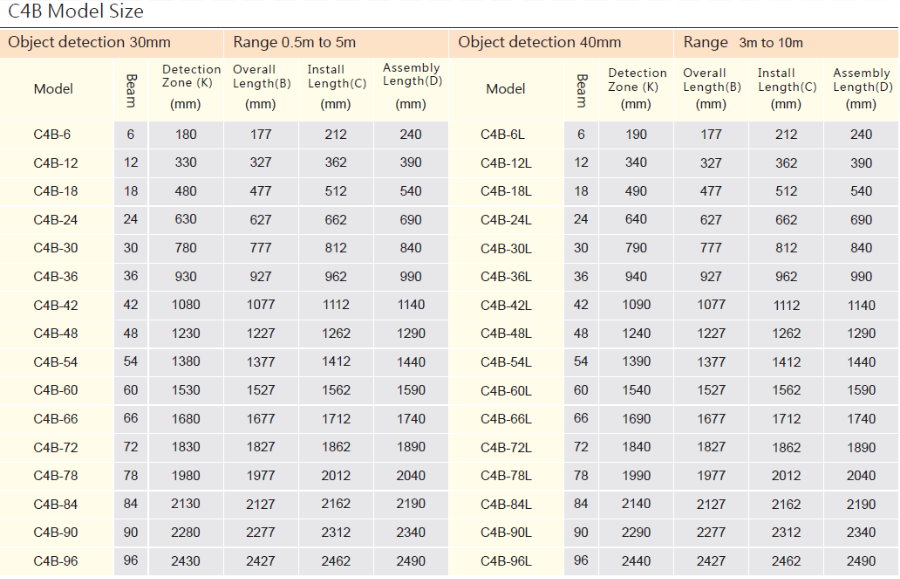

★Model

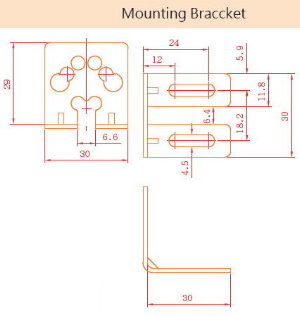

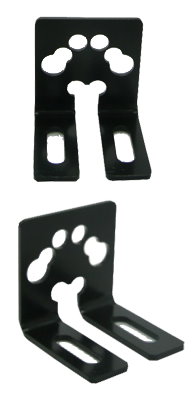

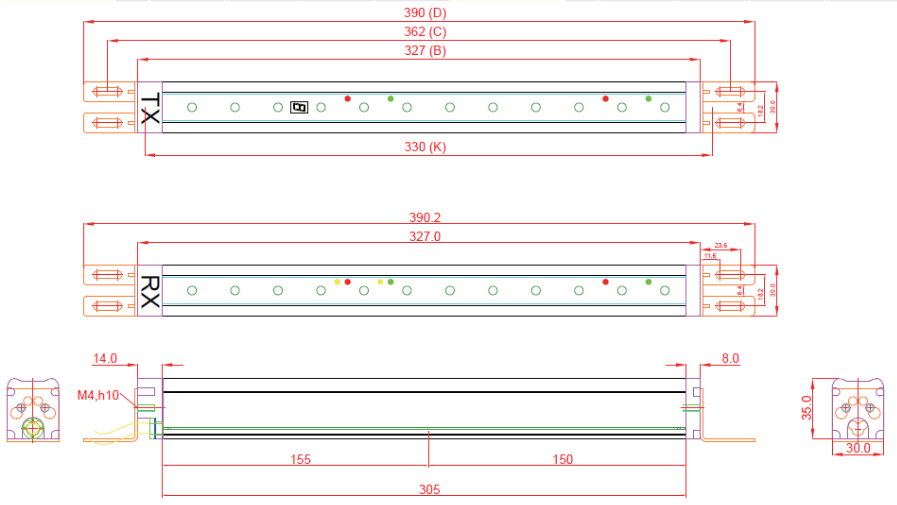

★Bracket

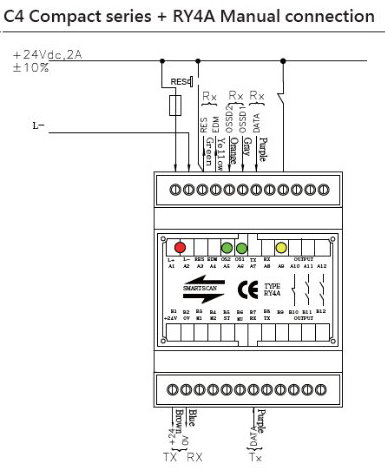

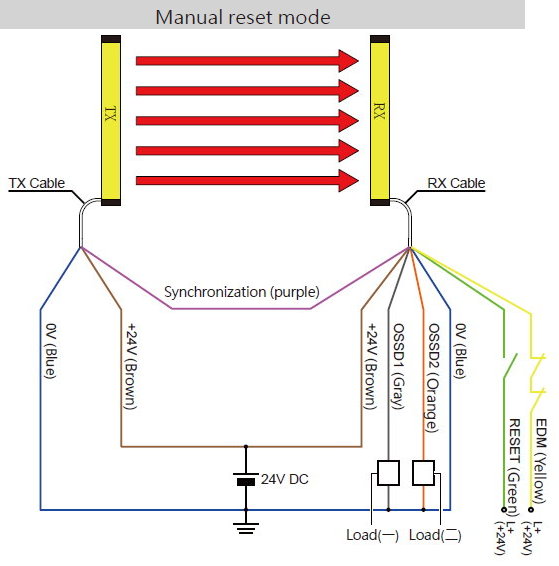

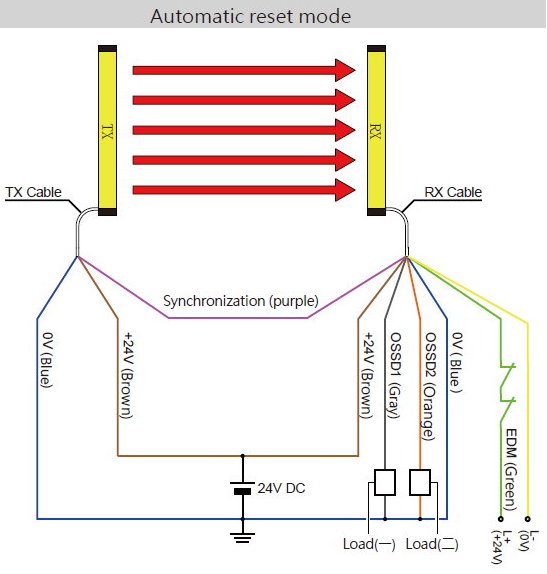

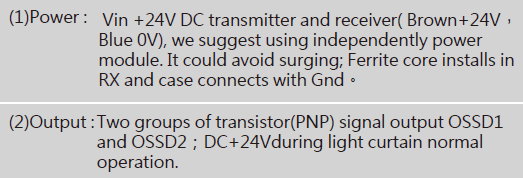

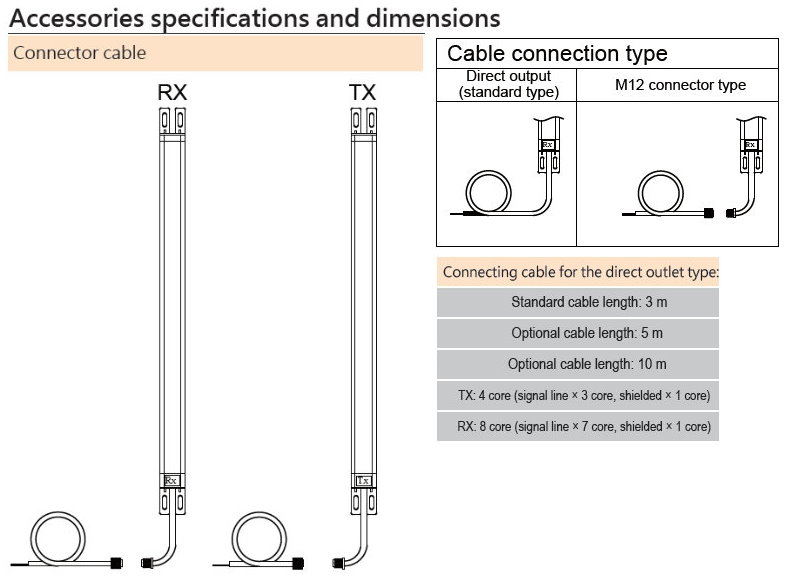

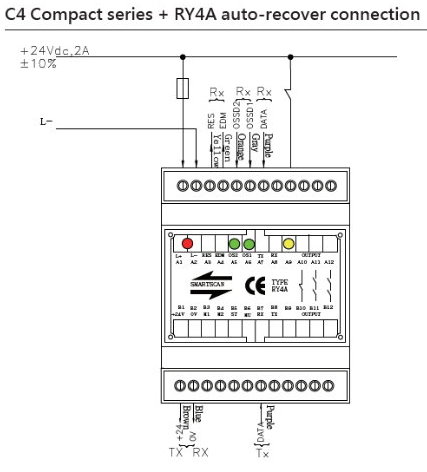

★Connection
C4 Compact Series Machine Safety Devices PDF
